CWP, Magnetic Pumps & Fire Pumps

Seal-less Pumps

All ROTOS seal-less pumps and equipment are engineered to comply with latest Industrial Pump Standard:  ISO 2858 Seal-less centrifugal magnetic drive pumps API 685 Seal-less MDP pumps for Petroleum Industry. ROTOS pumps are serviced through an International network of factory trained stocking Distributors providing Engineering, application assistance, system design, and in the field troubleshooting world-wide.

Drive alloy pumps ：STM /SVM /SDM ( Ex: 316L, Hastelloy C )
Non-metallic pumps：PTM/PCM ( Ex: PP-PVDF )

Specifications：

Flow rate：1~200 m3/hr
Head：1~90 m
Temperature：300℃Max

Applications：

Chemical and Petrochemical plants
Oil Refinery
Pharmaceutical

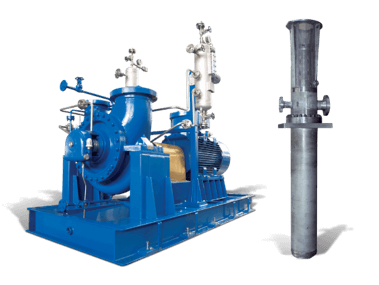

Process Pumps

These “heavy duty” type centrifugal pumps are designed for high efficiency industrial services under extreme temperature ranging from -100°C up to +450°C. These pumps provide the answer to a wide variety of pumping problems from the most difficult liquefied gases at low temperatures, to the similarly difficult conditions of service of the petroleum industry where liquids have to be pumped at temperatures well in excess of their ignition point.

Between these two extreme cases, there is an important range of liquid where the pumping temperature is close to the boiling point causing dangerous hydraulic reactions at the impeller eye, the effects of which could not be withstood by a standard pump. These pumps are the result of long practical experience gained in actual operation on these conditions over many years in main industrial installations.

Specifications：

Flow rate：8~1800 m3/hr
Head：10~480 m
Temperature：-100°C ~ +450°C

Applications：

Chemical and Petrochemical plants
Oil Refinery
Electronics industry

Surface Pumps

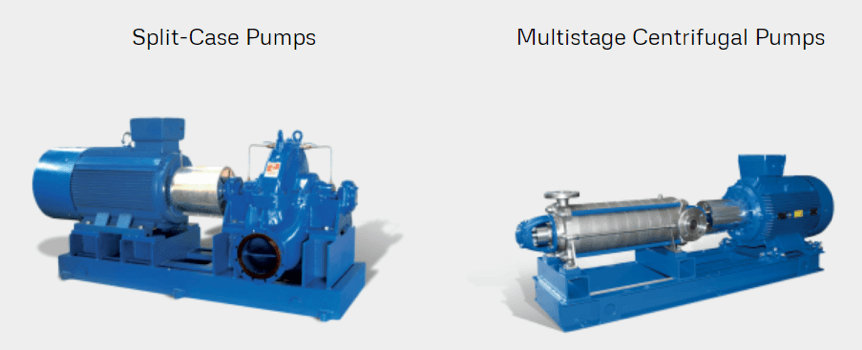

Gruppo Aturia offers a wide range of surface pumps that meet the needs of a range of top manufacturing sectors. Monobloc pumps are used in the civil sector for water supply, heating and air-conditioning purposes. Single-stage pumps and split case pumps are used for pumping systems in water systems and fire-fighting services and in the clean-water industry when large capacities and limited heads are required.

 As well as for pumping stations, multistage pumps are also used for artificial snowing, reverse osmosis and for more sophisticated services such as boiler feeding. Vertical turbine pumps are used in recirculation systems for industrial water, power plants, steel mills, in drainage systems and in fish-farming sites.

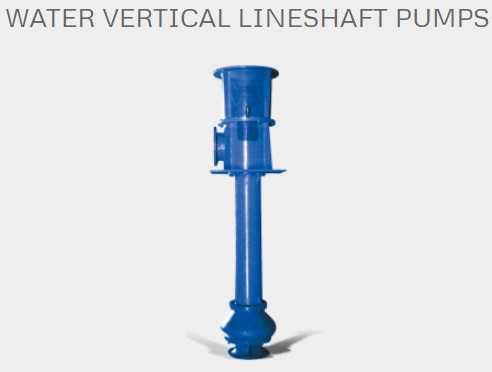

Vertical Line-Shaft Pumps

Vertical line-shaft pumps enable considerable savings to be achieved in the construction of pumping stations. These pumps are suitable for the transfer of most liquids, including clear water and liquids with small solids in suspension, especially in industrial applications. The installation is extremely simple. The pump assembly is easy to install with the minimum of site involvement.

Specifications：

Flow rate：20 ~ 44,000 m3/hr
Head：Up to 600 m
Temperature：90°C (Max.)

Applications：

Iron and steel, chemical
Petrochemical
Paper industry
Draining – storm water
Fire-fighting
